Jump-thru behavior

Published 22 Aug, 2017
150 words
<1 min

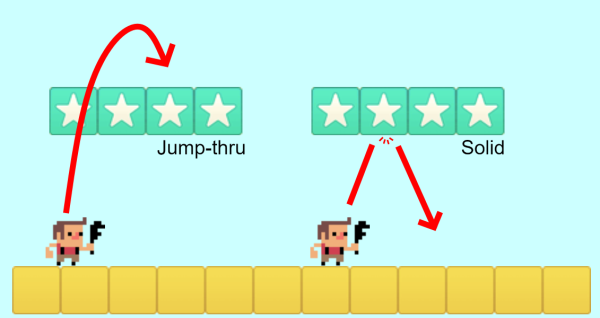

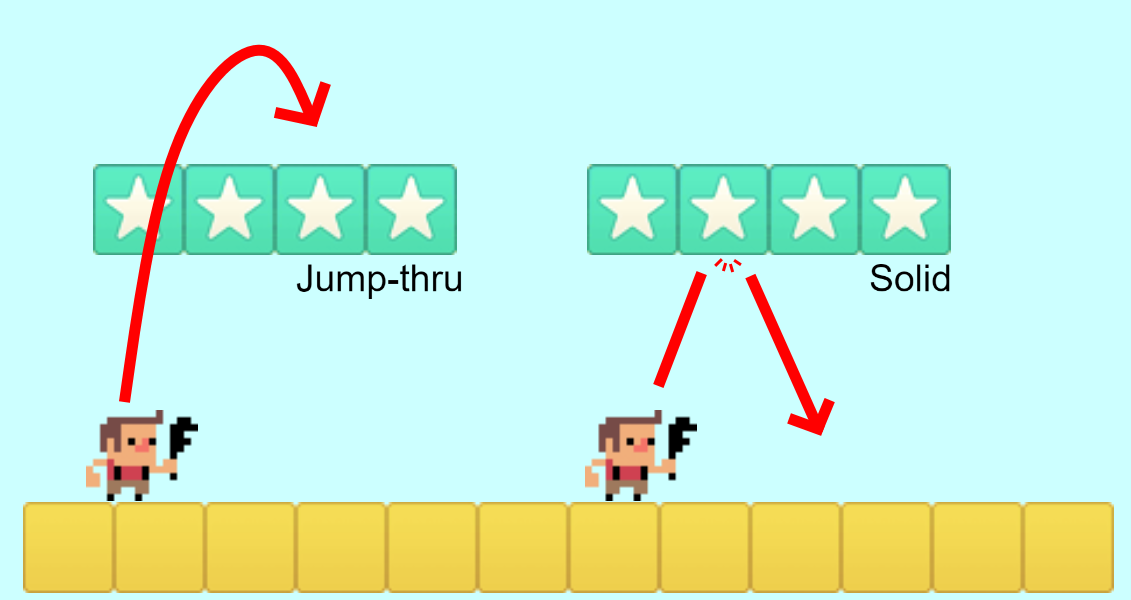

The Jump-thru behavior allows the Platform behavior to stand on the object, and jump on to it from underneath. This differs from the Solid behavior, which the Platform behavior can stand on, but not jump on to from underneath. The image below illustrates the difference.

Note the Jump-thru behavior does not support slopes. Any slopes in your game should use the Solid behavior instead.

Jump-thru vs. Solid behaviorsJump-thru vs. Solid behaviors

Jump-thru properties

Enabled

Set whether the behavior is initially enabled or disabled. If disabled, the object no longer acts as if it is a Jump-thru, and the Platform behavior will always fall through it.

Jump-thru conditions

Is enabled

True if the behavior is currently enabled. This can be changed by the Enabled property or the Set enabled action.

Jump-thru actions

Set enabled

Enable or disable the Jump-thru behavior for this object.
