Rexrainbow Board series tutorial #4 Click remove, and make it a game

  • 15 favourites


Attached Files

The following files have been attached to this tutorial:



3,135 visits, 6,503 views


This tutorial hasn't been translated.


Chapter 2. Refactor the code


Before we start to build the whole FSM, we need to do some little code refactor here. Shrink down the generated chess to 2 rows only:

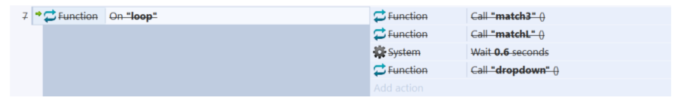

Disable Event#3 & 7. We don't need "loop" fuction anymore. We will build a self looping FSM.

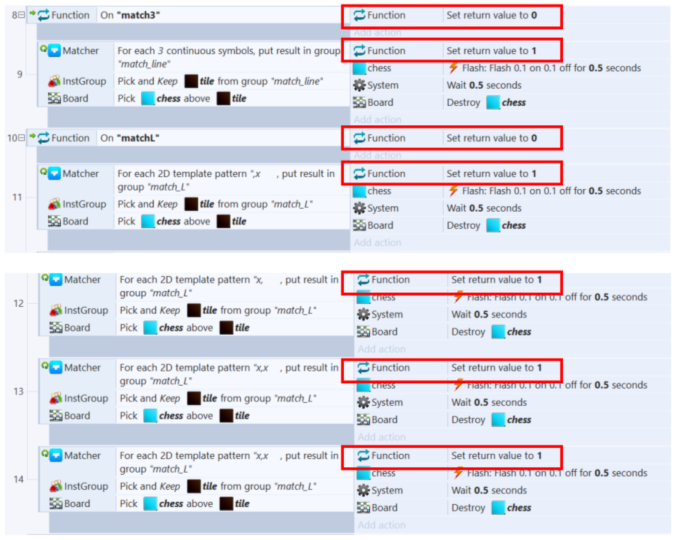

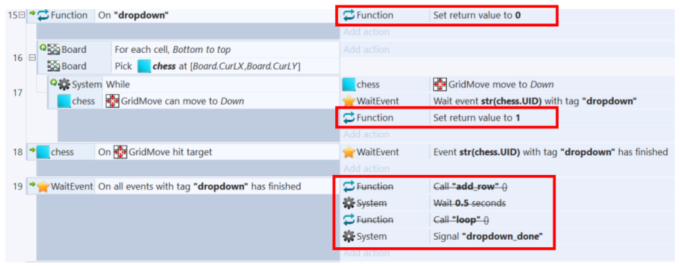

Add return values for "match3" & "matchL" & "dropdown" functions. Return values help us to know if there is any chess being operated or not. Event#19 changed to signaling style structure.
