Question about using the Construct 3 Renderer's, Create Static.

Post reply
0 favourites
  • 2 posts
From the Asset Store
Target 2.0 Slot HTML5 Construct 2 and Construct 3
$15 USD
Casino? money? who knows? but the target is the same!
bellborn's avatar
bellborn

  • Hi Ashley, if you can spare some time, I need help on solving this problem when getting a drawing addon to support C3Runtime. Thanks in advance.

    The Runtime Methods Used

    C2Runtime

    		// The current animation frame to draw
		var cur_frame = this.type.animations[0].frames[0];
		var cur_image = cur_frame.texture_img;

		var webGL_texture = this.runtime.glwrap.loadTexture(cur_image, false, this.runtime.linearSampling, cur_frame.pixelformat);

    As seen on the screenshot, It's using the method this.runtime.glwrap.loadTexture(). It works no problem on C2Runtime.

    C3Runtime

    As seen on the screenshot, I'm using the method this._renderer.CreateStaticTexture().

    Debugging

    C2Runtime

    No Errors.

    C3Runtime

    The console error.

    Construct 3 Runtime renderer, error reference.

    Checking the frame's texture_image

    I tried checking the frame's texture_image if it contains any data and leave a clue why this is happening.

    C2Runtime

    I logged it through the console.

    The image seems to be there and well, that explains it running well.

    C3Runtime

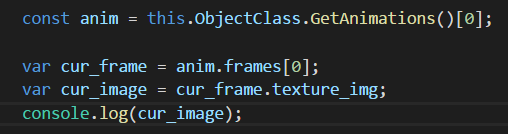

    Now checking the C3Runtime's frame texture_img.

    I logged it through the console.

    The image seems to be empty.

    It only returned the <img> tag, with of course, the error too.

    Ashley help would be really appreciated. If I made a mistake, please do tell. Thanks in advance.

    Tagged:

  • Try Construct 3

    Develop games in your browser. Powerful, performant & highly capable.

    Try Now Construct 3 users don't see these ads

  • It's hard to make sense of your code. Some of the pictures are partially minified which makes it harder to understand. That error means either the 'width' and 'height' properties of the thing you are passing as the texture data are missing, or are <= 0, so check you are passing something valid to create a texture from.

    Edit: oh, some of your C3 runtime code still references C2 runtime things which do not exist. For example texture_img does not exist in the C3 runtime. Check the SDK documentation. Also you should run this code in the debugger, that would make simple mistakes like this obvious.
