Publishing to Android via IntelXdk and AppSigner

  • 31 favourites


5,173 visits, 8,251 views



This tutorial is licensed under CC BY 4.0. Please refer to the license text if you wish to reuse, share or remix the content contained within this tutorial.

This Tutorial is for:

- I rebuild my game with construct 2, now I want to replace my old apk in the play-store with my construct 2 app

- I want to get an android apk run and set up with crosswalk (webgl)

- I want to sign my apk after IntelXdk export


In this tutorial I will explain:

- how to publish your HTML exported game to Android via IntelXdk - Crosswalk

- sign the apk with your own keyfile

(so you will be able to commit new versions of your app in the play store)

1. Export your game in Construct 2 (html export/open webapp)

- File / Export project...

- and click on HTML 5 website

2. Open IntelXdk and create a new app by existing code.

- Download IntelXdk if you havn´t already. here

- sign up for free or login in with existing account

- Click on "New Project" and navigate to "Import an Existing HTML5 Project"

- Navigate to your exported app from step 1.

2.1. Check your Plugin settings

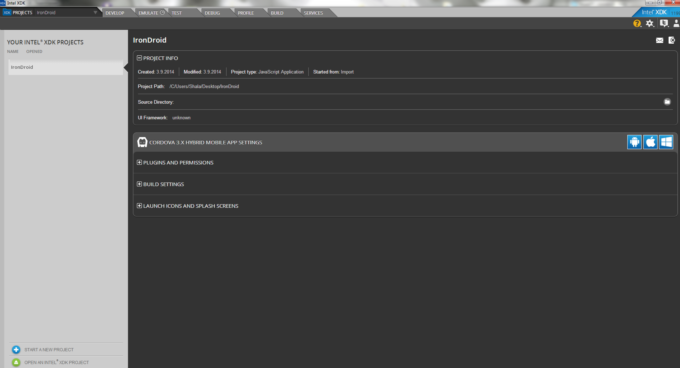

- in IntelXdk click on the upper left tab "Projects" and select your project

- now you should see the following settings

- under cordova 3.X expand the tab "Included Plugins" and uncheck everything you don´t need.

2.2. Check your Crosswalk settings

- Expand the tab "Build Settings" and inside click on the 2nd tab "Android Crosswalk"

- fill your information and be sure to uncheck!!! "Signed"

(you need to uncheck this, to sign your app by yourself - and use your own market-keystore)

2.3. Export your app

- In IntelXdk´s Main-Window click on the tab "BUILD"

- select "Crosswalk for Android"

- select "Upload Code" and hit build

- wait until its done

2.4. Download your app

- once build is done, you will be able to download the apk-files

- download your arm/x86 apk

- now you are ready to sign your app with your own keyfile :)

3. Sign your apk with your own keyfile via "apk-signer"

3.1. Download "apk-signer"

here or here

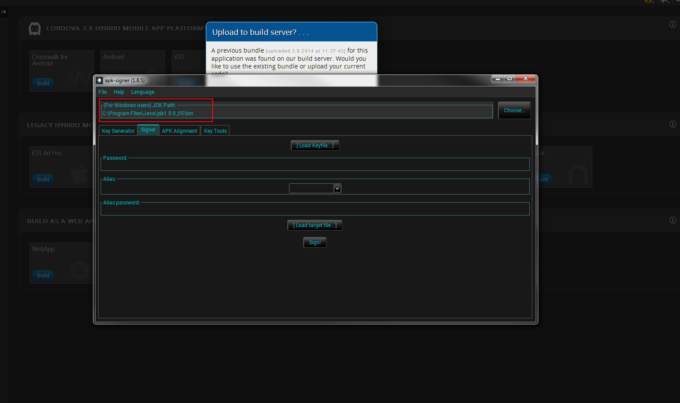

3.2. Setup APK Signer

- First setup the JDK-Path (for instance: c:\program files\java\jdk1.8.0_05\bin)

- load your own keyfile

- type in your password

- select your alias and type in your password

- select your downloaded file from step 2.4

- hit sign

- you will get a signed BUT unaligned apk

3.3. Align your apk

- in apk-signer select "APK Alignment"

- load the apk file from step 3.2

- click verify

- click align

Your apk is now ready to replace your old apk in the play store ;)
