Display the data of Array Object in HTML Table.

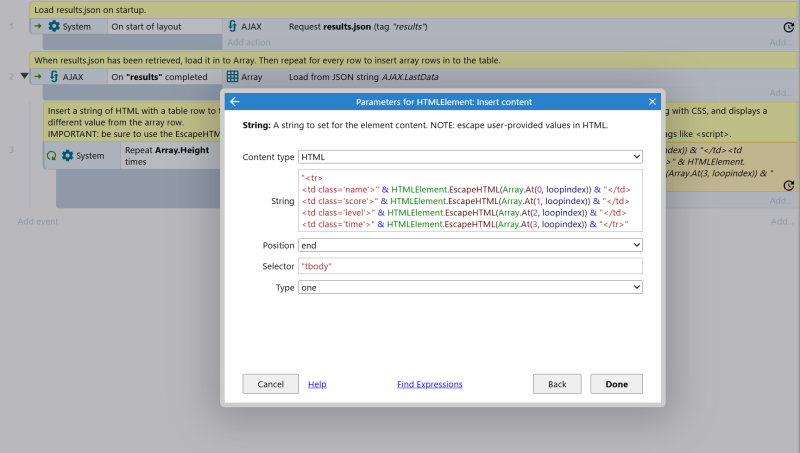

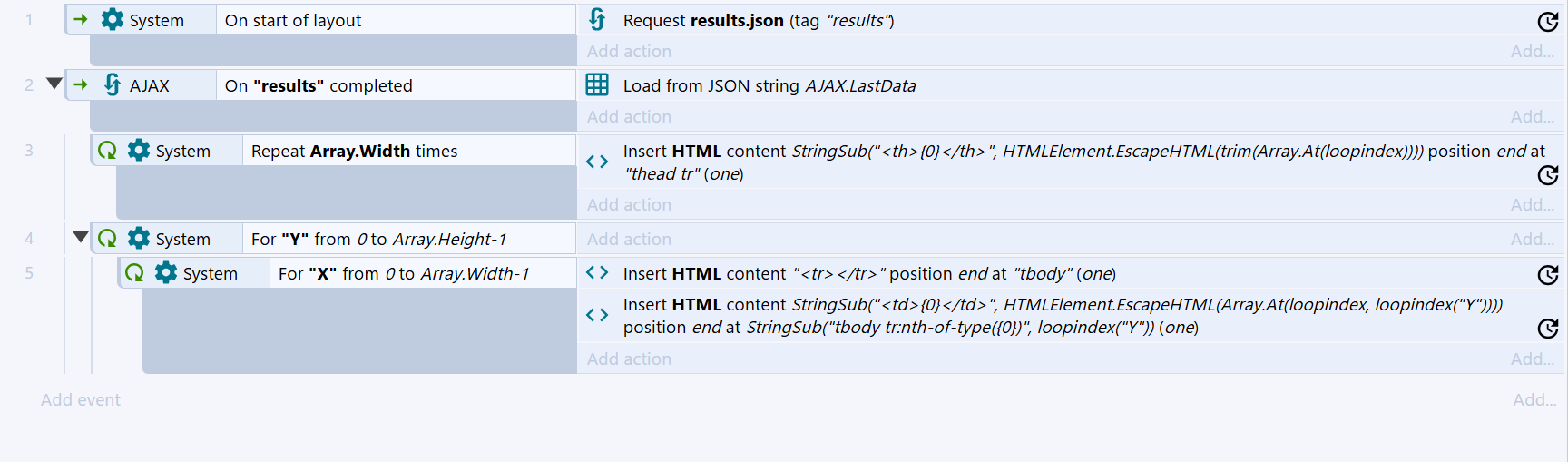

{"is-c3-clipboard-data":true,"type":"events","items":[{"eventType":"block","conditions":[{"id":"on-completed","objectClass":"AJAX","parameters":{"tag":"\"results\""}}],"actions":[{"id":"load","objectClass":"Array","parameters":{"json":"AJAX.LastData"}}],"children":[{"eventType":"block","conditions":[{"id":"repeat","objectClass":"System","parameters":{"count":"Array.Width"}}],"actions":[{"id":"insert-content","objectClass":"HTMLElement","parameters":{"content-type":"html","string":"StringSub(\"<th>{0}</th>\", HTMLElement.EscapeHTML(trim(Array.At(loopindex))))","position":"end","selector":"\"thead tr\"","type":"one"}}]},{"eventType":"block","conditions":[{"id":"for","objectClass":"System","parameters":{"name":"\"Y\"","start-index":"0","end-index":"Array.Height-1"}}],"actions":[],"children":[{"eventType":"block","conditions":[{"id":"for","objectClass":"System","parameters":{"name":"\"X\"","start-index":"0","end-index":"Array.Width-1"}}],"actions":[{"id":"insert-content","objectClass":"HTMLElement","parameters":{"content-type":"html","string":"\"<tr></tr>\"","position":"end","selector":"\"tbody\"","type":"one"}},{"id":"insert-content","objectClass":"HTMLElement","parameters":{"content-type":"html","string":"StringSub(\"<td>{0}</td>\", HTMLElement.EscapeHTML(Array.At(loopindex, loopindex(\"Y\"))))","position":"end","selector":"StringSub(\"tbody tr:nth-of-type({0})\", loopindex(\"Y\"))","type":"one"}}]}]}]}]}

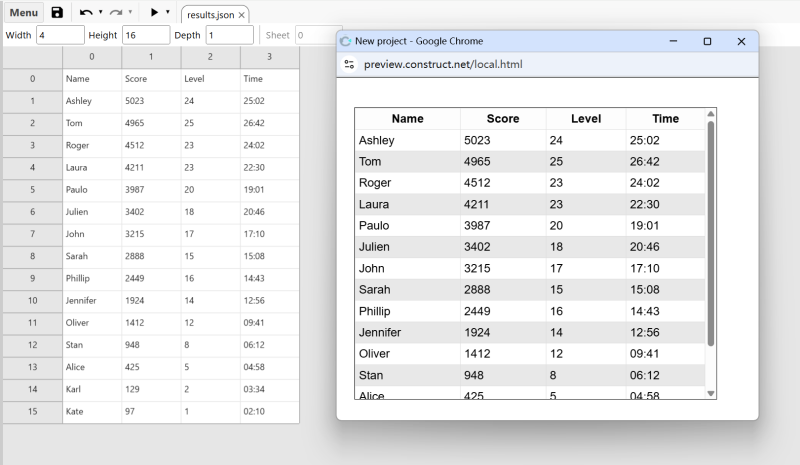

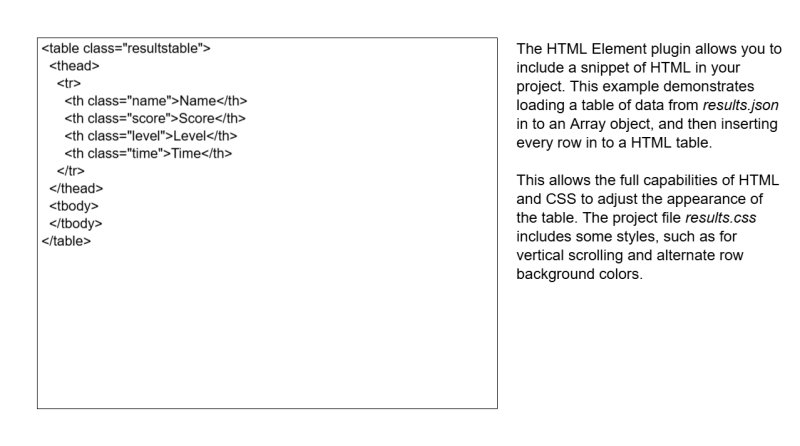

Example browser: HTML Table

Although the Example browser of the Construct editor provides an example of an HTML Table, this method need to fill in the table content - column in the eventsheet. If you plan to display dynamic data, it is not so convenient.

#open=html-table

Therefore I provide a more flexible example.

.C3P

array-html-table.c3p

Download now 161.02 KB
