Playfab upload entity file question

  • This is likely just my ignorance of javascript but wanted to see if someone could help with the correct way to upload a file to playfab once the upload url is received.

    The below will successfully use the InitiateFileUploads api to receive a response with an upload url. I am already logged in and getting the appropriate entityId / type and passing it in. I would like now to do a put using that url to upload sample data which I call DataTest below into an entity file on playfab.

    What is the proper way to do this in javascript? Does it need to be encoded? I am attempting to use fetch in an async function but am I simply approaching it incorrectly? Any help is appreciated!

    Also, I was able to get their setObjects api working correctly which could also be used to store small sets of data as demo'd below but I am interested in storing larger amounts of information which requires the use of an entity file.

    The closest documentation on playfab is below under the entity files section:

    api.playfab.com/docs/tutorials/entities/getting-started-entities

    //InitiateFileUploads
    //https://api.playfab.com/documentation/Data/method/InitiateFileUploads
    function PF_InitiateFileUploads(f_EntityId,f_EntityType,f_EntityTypeString,mapData){

    	var request = {
    		"FileNames": [
    			"mapData"
    		],
    		"Entity": {
    			"Id": f_EntityId,
    			"Type": f_EntityType,
    			"TypeString": f_EntityTypeString
    		}
    	}

    	PlayFabDataSDK.InitiateFileUploads(request,onInitiateFileUploadsResponse);
    }


    function onInitiateFileUploadsResponse(response, error) {
    	//console.log(gMapData);
    	var uploadURL;
    	var DataTest={
    		posX: 45,
    		posY: 23
    	};

    	if (response !== null) {
    		console.log("InitiateFileUploads response received")
    		console.log("InitiateFileUploads response: " + JSON.stringify(response));

    		uploadURL = response.data.UploadDetails.UploadUrl;

    		loadFile(uploadURL,DataTest)

    	} else if (error !== null) {
    		console.log("InitiateFileUploads error received")
    		console.log("InitiateFileUploads error: " + JSON.stringify(error));

    	}
    }

    async function loadFile(uploadURL,data){
    	var payload = data;
    	var otherParam={
    		headers:{
    			"content-type":"application/json; charset=UTF-8"
    		},
    		body:payload,
    		method:"PUT"
    	};
    	const response = await fetch(uploadURL,otherParam);
    	const jsonData = await response.json();
    }
  • Try Construct 3

    Develop games in your browser. Powerful, performant & highly capable.

    Try Now Construct 3 users don't see these ads
  • Was able to figure this out..

    First, I had an error in assigning the uploadURL from the response.

    uploadURL = response.data.UploadDetails.UploadUrl;

    should have been

    uploadURL = response.data.UploadDetails[0].UploadUrl;

    While using fetch should probably work as well, ended up getting it to work with XMLHttpRequest.

    I got the following code to successfully push the data to playfab as a file.

    In the example below I am putting DataTest in but in my use case I have a large array of tile map data that I am storing. In place of DataTest in my example I set my tile map data equal to a global variable and send that within the send instead.

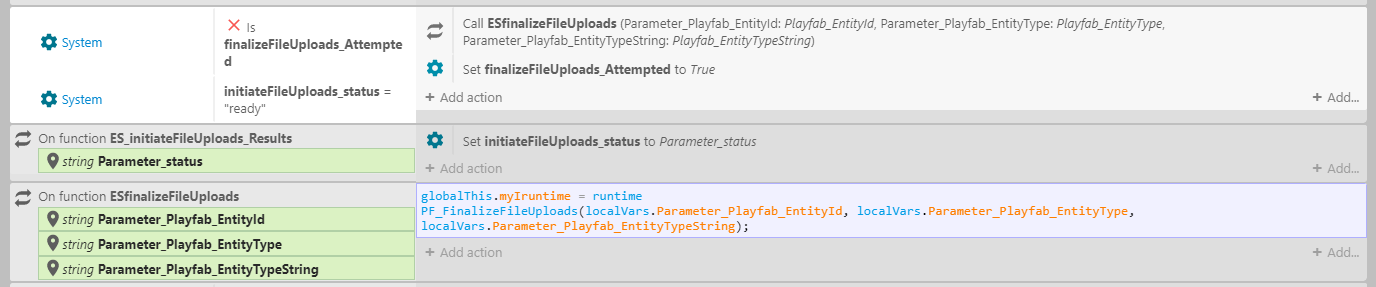

    General flow is that once the data is ready to send, call PF_InitiateFileUploads passing the entity information received from login which I had stored in a global variable in the event sheet. In the callback, send data to url received with XMLHttpRequest, initiate trigger to event sheet with status = "ready", then followup with with a call to FinalizeFileUploads.

    //InitiateFileUploads
    //https://api.playfab.com/documentation/Data/method/InitiateFileUploads
    function PF_InitiateFileUploads(f_EntityId,f_EntityType,f_EntityTypeString){

    	var request = {
    		"FileNames": [
    			"mapData"
    		],
    		"Entity": {
    			"Id": f_EntityId,
    			"Type": f_EntityType,
    			"TypeString": f_EntityTypeString
    		}
    	}
    	PlayFabDataSDK.InitiateFileUploads(request,onInitiateFileUploadsResponse);
    }
    //FinalizeFileUploads
    //https://api.playfab.com/documentation/Data/method/FinalizeFileUploads
    function PF_FinalizeFileUploads(f_EntityId,f_EntityType,f_EntityTypeString){

    	var request = {
    		"FileNames": [
    			"mapData"
    		],
    		"Entity": {
    			"Id": f_EntityId,
    			"Type": f_EntityType,
    			"TypeString": f_EntityTypeString
    		}
    	}
    	PlayFabDataSDK.FinalizeFileUploads(request,onFinalizeFileUploadsResponse);
    }

    function onInitiateFileUploadsResponse(response, error) {
    	var uploadURL;
    	var DataTest={
    		posX: 45,
    		posY: 23
    	};

    	if (response !== null) {
    		console.log("InitiateFileUploads response received")
    		console.log("InitiateFileUploads response: " + JSON.stringify(response));

    		uploadURL = response.data.UploadDetails[0].UploadUrl;

    		console.log(uploadURL)

    		var xhr = new XMLHttpRequest();
    		xhr.open("PUT", uploadURL, true); // true : asynchrone false: synchrone
    		xhr.setRequestHeader("Content-Type", "application/json;charset=UTF-8");
    		xhr.send(JSON.stringify(DataTest));
    		xhr.onreadystatechange = function () {
    			if (this.readyState === 4) {
    				console.log(this.responseText)
    				var status = "ready";
    				console.log("status: " + status)
    				myIruntime.callFunction("ES_initiateFileUploads_Results",status)
    			}
    		};
    	} else if (error !== null) {
    		console.log("InitiateFileUploads error received")
    		console.log("InitiateFileUploads error: " + JSON.stringify(error));
    	}
    }
    function onFinalizeFileUploadsResponse(response, error) {
    	if (response !== null) {
    		console.log("FinalizeFileUploads response received")
    		console.log("FinalizeFileUploads response: " + JSON.stringify(response));
    	} else if (error !== null) {
    		console.log("FinalizeFileUploads error received")
    		console.log("FinalizeFileUploads error: " + JSON.stringify(error));
    	}
    }
