Hello!

I‘ve been working on a new puzzle

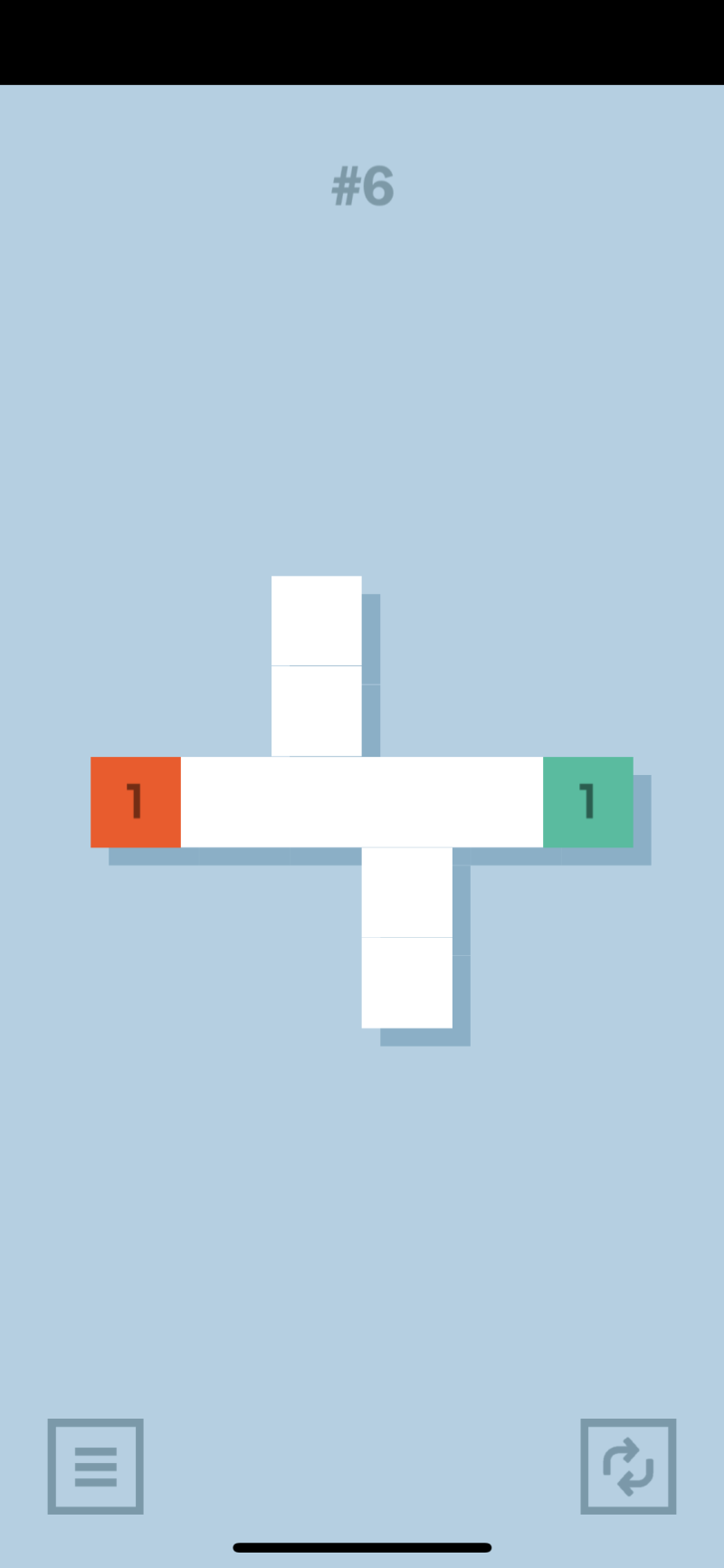

prototype. Now the white sprites (170x170pixels) in the example screenshot is not seamless when the are placed next to each other. So you can see some lines between them. I think this has to do with the sampling.

Is there any workaround for the this?

Best,

Kraudi
- Ashley Construct Team Founder
- Moderator
- - Joined 21 May, 2007
  - 669 topics • 30,394 posts
- 0
- 29 Oct, 2019
- Quote
For pixel-perfect rendering, tick Optimize for pixel art when creating the project. As described in the manual this sets the following project properties (which you can also set at any time):
- Pixel rounding is enabled
- Letterbox integer scale fullscreen mode
- Low fullscreen quality
- Nearest sampling
- Kraudi
- - Joined 14 Jan, 2013
  - 39 topics • 299 posts
- 1
- 29 Oct, 2019
- Quote
Thanks for the answer :) I tried using only nearest sampling and it worked well. But after that my fonts looks like they have a lot of aliasing. Also my project uses scale outer. So it doesnt work that way?
Try Construct 3

Develop games in your browser. Powerful, performant & highly capable.
Try Now Construct 3 users don't see these ads
- newt
- - Joined 12 Nov, 2008
  - 396 topics • 10,741 posts
- 1
- 29 Oct, 2019
- Quote
Why not just use Tilemaps?
- vtrix
- - Joined 24 Jul, 2011
  - 139 topics • 910 posts
- 1
- 30 Oct, 2019
- Quote
Ashley
i believe there was a same problem occuring in c2 , but it happened on export, there was a solution and it got fixed, i don't know if this was taken over to c3

it also worked without pixel rounding which have it downsides

https://www.construct.net/en/forum/construct-2/closed-bugs-22/pixel-padded-generating-86004?kws=seams%2bin%2btexture
- Ashley Construct Team Founder
- Moderator
- - Joined 21 May, 2007
  - 669 topics • 30,394 posts
- 1
- 31 Oct, 2019
- Quote
Yes, the fix mentioned in that report also happens in C3.
