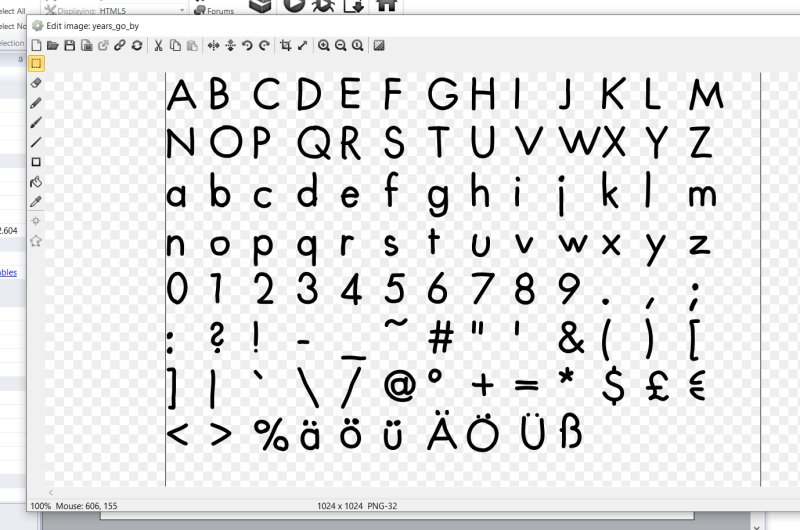

I'm trying to add some German characters to my SpriteFont+ sheet:

I also made sure to modify the Character set:

ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789.,;:?!-_~#"'&()[]|`\/@°+=*$£€<>%äöüÄÖÜß

Unfortunately, there's all this weird spacing and I'm not sure what's causing it! The new letters seem to be aligned with the others... The Character set seems to match up with the sprite fonts...

I'm at a loss for an explanation. Anyone know what's going on?
- dop2000
- - Joined 26 May, 2016
  - 139 topics • 12,718 posts
- 1
- 24 May, 2019
- Quote
[wrong answer deleted]
Since you are already using SpritFont+, you need to modify width for some characters in the JSON string.

For example:

{""c2array"":true,""size"":[2,8,1],""data"":[[[10],[11],[12],[19],[21],[22],[23],[34]],[["" ""],[""l""],[""i""],[""j""],[""f""],[""abcegh""],[""dk""],[""m""]]]}

First group [[10],[11],[12],[19],[21],[22],[23],[34]] are character width values.

The second group are corresponding characters. So, for example, to make letter "i" wider, you need to increase the number [12], or move letter "i" to another group (add it to ""f"" for example).
- dop2000
- - Joined 26 May, 2016
  - 139 topics • 12,718 posts
- 2
- 24 May, 2019
- Quote
Please refresh the post, I edited it while you were reading :)
Try Construct 3

Develop games in your browser. Powerful, performant & highly capable.
Try Now Construct 3 users don't see these ads
- farmersfable
- - Joined 11 Mar, 2019
  - 4 topics • 6 posts
- 1
- 25 May, 2019
- Quote
I wish this worked for me... The end result is the same. There is always a white space to the right of German characters (vowels with umlauts).

{""c2array"":true,""size"":[2,42,1],""data"":[[[8],[9],[11],[12],[13],[15],[16],[17],[19],[20],[21],[23],[24],[25],[26],[28],[29],[30],[31],[32],[33],[34],[35],[36],[37],[38],[39],[40],[41],[44],[45],[47],[48],[49],[51],[52],[54],[56],[58],[59],[60],[73],[0],[0],[0],[0],[0],[0],[0]],[[""Il!'""],[""i|""],[""j:""],["".""],["")""],["",(`""],["";""],[""]""],[""1[""],[""J\""""],[""t-""],[""r""],[""s?°""],[""f""],[""L*""],[""€""],[""Pk""],[""F""],[""hn""],[""Bceuvx""],[""Eapq6""],[""So28""],[""Rbdgy3/""],[""05""],[""z49<>""],[""T\\$""],[""Y+""],[""HUXZ~£""],[""DK7=""],[""_""],[""C#&""],[""m""],[""N""],[""V""],[""w""],[""AG""],[""@""],[""O""],[""Q""],[""M""],[""%""],[""W""],[""ä""],[""ö""],[""ü""],[""Ä""],[""Ö""],[""Ü""],[""ß""]]]}
- farmersfable
- - Joined 11 Mar, 2019
  - 4 topics • 6 posts
- 2
- 25 May, 2019
- Quote
After some experimentation I changed the value in my "size" array from 42 to 49 (to match the number of characters in my SpriteFont+ Character set):

{""c2array"":true,""size"":[2,49,1],""data"":[[[8],[9],[11],[12],[13],[15],[16],[17],[19],[20],[21],[23],[24],[25],[26],[28],[29],[30],[31],[32],[33],[34],[35],[36],[37],[38],[39],[40],[41],[44],[45],[47],[48],[49],[51],[52],[54],[56],[58],[59],[60],[73],[48],[38],[32],[58],[58],[56],[56]],[[""Il!'""],[""i|""],[""j:""],["".""],["")""],["",(`""],["";""],[""]""],[""1[""],[""J\""""],[""t-""],[""r""],[""s?°""],[""f""],[""L*""],[""€""],[""Pk""],[""F""],[""hn""],[""Bceuvx""],[""Eapq6""],[""So28""],[""Rbdgy3/""],[""05""],[""z49<>""],[""T\\$""],[""Y+""],[""HUXZ~£""],[""DK7=""],[""_""],[""C#&""],[""m""],[""N""],[""V""],[""w""],[""AG""],[""@""],[""O""],[""Q""],[""M""],[""%""],[""W""],[""ä""],[""ö""],[""ü""],[""Ä""],[""Ö""],[""Ü""],[""ß""]]]}

This solved my problem.
- dop2000
- - Joined 26 May, 2016
  - 139 topics • 12,718 posts
- 1
- 26 May, 2019
- Quote
Oh, I don't read German, so I thought the problem was with very little space between letters like "i" and "l".
