Rojo3d. 3D engine for Construct 2

To calculate direction of casting depending on the players angle do something like this:

ax= cos(player.angle) -distance, ay = -sin(player.angle) -distance

Thank God! I've already passed this stage...

So you will need to nest arrays, and depending on player position access them, then arrays within them and place blocks accordingly. To do that each block has to have a boo that defines its availability.

I was trying to do some tests with that before, but I ran into a problem: Let's say that the player can Aim at the object 'ground' which is extremely large and it's origin point is centered, also let's say the player is right at the block edge, the "it's inside radius boolean" wouldn't detect because the tests I made only takes the player PosXYZ and object PosXYZ and don't take other important values to as its length...

How could I make this 'algorithm'/'formula' to detect the distance from player and block? Maybe I could use a: "is overlapping object", but then I must do this detection in a loop for all the object what wouldn't be very optimal...

Also, lest say your cube is 10x10x10, then you can repeat the ray test n/10 times, so per grid and not per pixel.

It's a great idea, not gonna lie. But it would be only for a cube exclusive game. Since objects with meshes that don't will the cubic format would be detecting even if the player isn't looking at it.

But everything you said gave me an idea... I will try my best to see if it works. Thank you! :D

Brooo.... I was searching for 3D Collisions and everything... I think it will be easier to learn how to program inside a 3D Engine, maybe it will be easier to learn all the Multiplayer mechanics for those 3D engines rather than learning how to implement a 3D Engine inside C2... Nah... (laughing desperately like the joker)

WOW!! Really?? I would love to see the project ROJO is working on... It will be similar to C2 engine? Or similar to Godot/Unity? I only knew about the existence of C2 three years ago during pandemy, also I only knew about ROJO I guess about 1 year ago...

Seeing C2-like engines would be revolutionary!

R0J0hound I thought I'll let you know, If you will ever decide to do the 3D construct, I would like to help you out to the maximum of my abilities, that includes doc organisation, design, ui, some web stuff, and video and sound editing if you'd go for yt video like tutos ( I did a lot of official AOZ Studio tutorial videos ), and crowd founding.

And a suggestion: it wouldn't even have to be an event based system, but having a language like Basic, which is pretty much what construct coding feels like, would be fully sufficient to make proper 3D indie games. Main thing would be renderer and that would have to be at a level of Manu at least.

add n*( tSpace.At(1,1,0) = tSpace.At(x2+1,y2+1,0) )

Sorry to be nosy, but are you trying to compare with a info inside the array is equal to another with a fórmula...

And if it's: true - add the x value to array

False: add value 0 to array

?

It seems correct to me. Maybe you could try using the expression:

{I put between parentheses to be easier to just copy and paste}

* Remove que Comments I made...

// Start Here (

find(

tSpace.At(1,1,0),

tSpace.At(x2+1,y2+1,0)

)

<> //Not equal

-1

) // End Here

I think this expression might work.

R0J0hound

Can you help me out with something. Not plugin related but Idk if this is a bug or wtf?

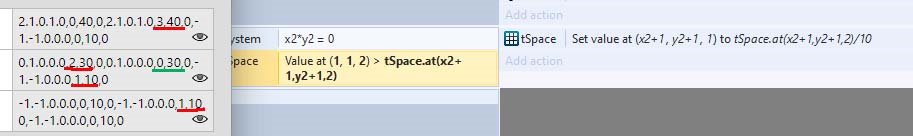

In the for loop y2 x2, both from -1 to 1, i'm doing this test between numbers in cells at x2,y2,2 . I'm taking number from a cell at 1,1,2 ( green ) and checking it against 4 other cells ( red ) inside 3x3x4 array. I only want to calculate cells that contain larger number then central cell and then divide them. This is super simple. It doesn't work thou! If the condition with > is there, it calculates something else, and still calculates those cells that have bigger number then central cell number. Please have a look at it and tell me is it me or it is a bug? Thx!

Other than this, I manage to program working 3D bitwise mapping system, and this is a way I wanted to test where walls should go.

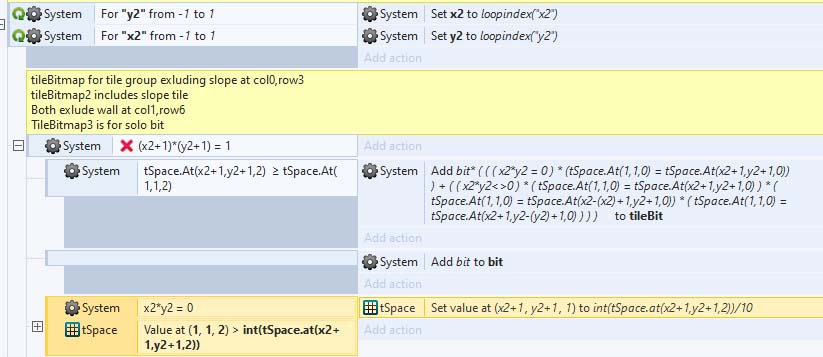

Here's the whole loop. Conditions above are working. And I got to admit, I wanted to make one more bit calculation with condition checking same numbers for whole day today and couldn't get it to check properly, so decided on something else, and still this isn't working.

EDIT Just realized that the first >= condition isn't working, and is passing trough. Really got to figure out is it a bug or not. Or maybe filling up array and checking it within the same for loop doesn't work?
